Double-Braced Two-Tier X Keyboard Stand with Adj Tilt and Angle 2nd Tier

Quik Lok T22

Two-Tier Double-Braced X Keyboard Stand.

The Quik Lok T22 is a heavy-duty, two-tier double-braced X-frame keyboard stand designed for multi-keyboard setups. Part of the T-ReX series, it features an electronically welded steel construction with dual 30 x 15 mm frame tubing for structural stability. Height adjustments are managed via the Dino-Bite central disc locking mechanism, offering 9 height settings ranging from 552 mm to 943 mm (21.73 to 37.13 in). The lower tier supports primary keyboards, while the fixed second tier holds secondary synthesizers or controllers up to 33.80 kg (74.52 lbs), bringing the total weight capacity to 81 kg (178.57 lbs). The stand is compatible with QLX-series accessories, including microphone boom arms, music stands, and tablet holders.

SPECIFICATIONS:

• Base depth: 470 mm (18.50 in)

• Category: Stand / Two-tier X-frame keyboard stand

• Color: Black

• Compatible accessories: QLX4, QLX5, IPS13

• Foldable: Yes

• Folded height: 1,020 mm (40.16 in)

• Frame bracing: Double-braced structure

• Frame tubing size: 30 x 15 mm (1.18 x 0.59 in) double tubing

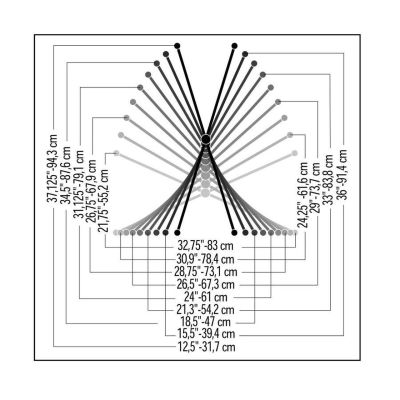

• Height adjustment range: 552 to 943 mm (21.73 to 37.13 in) across 9 positions

• Locking mechanism: Dino-Bite central toothed disc system

• Lower tier depth: 350 mm (13.78 in)

• Material: Steel

• Maximum supported weight (second tier): 33.80 kg (74.52 lbs)

• Maximum supported weight (total): 81 kg (178.57 lbs)

• Security / Locking: Yes

• Support tube diameter: 30 mm (1.18 in)

• Support: Ground

• Tier configuration: Two-tier

• Upper tier depth: 310 mm (12.20 in)

• Use: Keyboards, synthesizers, digital pianos

• Weight: 6.80 kg (14.99 lbs)
