Single-Braced X Keyboard Stand with Trigger Lok 5 Position Height Adj System

Quik Lok T500

Single-Braced Single-Tier X Keyboard Stand with Trigger-Lok System.

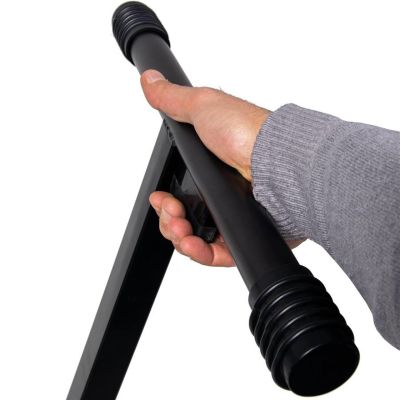

The Quik Lok T500 is a single-braced, single-tier X-frame keyboard stand equipped with the Trigger-Lok height adjustment mechanism. Built with 30 x 30 mm square steel uprights and 30 mm round tubing, it supports loads up to 81 kg (178.57 lbs). The Trigger-Lok system allows fast opening, closing, and height adjustment across 5 positions ranging from 535 mm to 970 mm (21.06 to 38.19 in) via a release lever located directly beneath the right support arm, leaving the central junction clean and free of knobs. Self-leveling rubber feet and open rubber rest pads accommodate keyboards of varying depths while ensuring stability on uneven surfaces. The stand includes 2 integrated cable management clips and is expandable with Quik Lok QLX-series accessories.

SPECIFICATIONS:

• Base depth: 504 mm (19.84 in)

• Category: Stand / X-frame keyboard stand

• Color: Black

• Compatible accessories: QL662, QLX3, QLX4, QLX5, LPHX, IPS11, IPS13, TOP001

• Foldable: Yes

• Folded height: 1,010 mm (39.76 in)

• Frame tubing size: 30 x 30 mm (1.18 x 1.18 in)

• Height adjustment range: 535 to 970 mm (21.06 to 38.19 in) across 5 positions

• Integrated features: 2x cable management clips

• Locking mechanism: Trigger-Lok lever system

• Material: Steel

• Maximum supported weight: 81 kg (178.57 lbs)

• Padding/Feet: Self-leveling feet and open rubber support pads

• Support depth: 405 mm (15.94 in)

• Support tube diameter: 30 mm (1.18 in)

• Support: Ground

• Tier configuration: Single-tier

• Use: Keyboard, synthesizer, digital piano

• Weight: 4 kg (8.82 lbs)
