Double-Braced X Keyboard Stand with Trigger Lok 5 Position Height Adj System

Quik Lok T550

Heavy-Duty Double-Braced Single-Tier X Keyboard Stand with Trigger-Lok System.

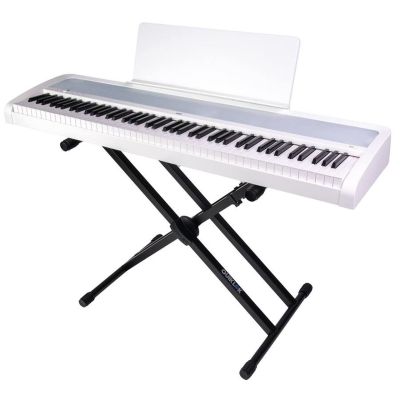

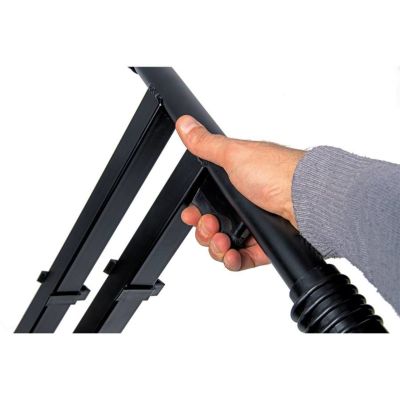

The Quik Lok T550 is a heavy-duty, double-braced single-tier X-frame keyboard stand equipped with the Trigger-Lok height adjustment mechanism. Constructed with 30 x 30 mm square steel uprights and 30 mm round tubing, it provides extra structural stability for heavier setups and supports total loads up to 91 kg (200.62 lbs). The Trigger-Lok system enables fast opening, closing, and height selection across 5 positions ranging from 535 mm to 970 mm (21.06 to 38.19 in) via a trigger lever located under the right support arm, keeping the central junction clean and uncluttered. Self-leveling rubber feet and open rubber rest pads ensure stability on uneven surfaces and accommodate keyboards of varying depths. The stand includes 2 integrated cable management clips and is expandable with Quik Lok QLX-series accessories.

SPECIFICATIONS:

• Base depth: 504 mm (19.84 in)

• Category: Stand / X-frame keyboard stand

• Color: Black

• Compatible accessories: QL662, QLX3, QLX4, QLX5, LPHX, IPS13, TOP001

• Foldable: Yes

• Folded height: 1,010 mm (39.76 in)

• Frame bracing: Double-braced structure

• Frame tubing size: 30 x 30 mm (1.18 x 1.18 in)

• Height adjustment range: 535 to 970 mm (21.06 to 38.19 in) across 5 positions

• Integrated features: 2x cable management clips

• Locking mechanism: Trigger-Lok lever system

• Material: Steel

• Maximum supported weight: 91 kg (200.62 lbs)

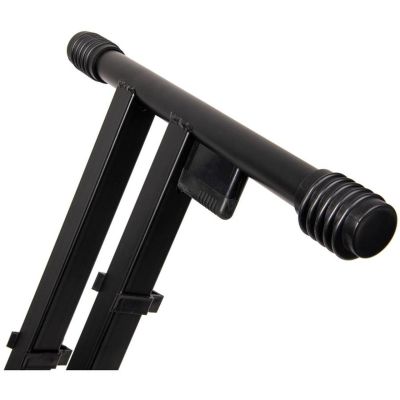

• Padding/Feet: Self-leveling feet and open rubber support pads

• Security / Locking: Yes

• Support depth: 405 mm (15.94 in)

• Support tube diameter: 30 mm (1.18 in)

• Support: Ground

• Tier configuration: Single-tier

• Use: Keyboard, digital piano, workstation, synthesizer

• Weight: 6.10 kg (13.45 lbs)
